Bitumen Produced from crude oil is one of the most important materials used in modern construction and road building. This black, sticky substance plays a crucial role in waterproofing, binding, and paving infrastructure around the world. Knowing how bitumen is produced helps engineers, traders, and even builders understand its qualities and why refinery‑produced bitumen has become the global standard for durability and performance.
Bitumen, also known as asphalt, forms during the crude oil refining process, where lighter fuels such as gasoline and diesel are separated, leaving behind the heaviest fraction. This remaining residue undergoes a series of refinery stages to transform it into high‑grade Bitumen Produced suitable for industry use.
Its production is more than just heating or separating materials—it’s a controlled chemical process ensuring quality, longevity, and adaptability under various weather conditions. In this article, we will explore the refinery steps and key technical aspects of bitumen production, focusing on how crude oil becomes the bituminous binder used in roads and waterproof systems across the globe.
What Is Bitumen?
Bitumen Produced in oil refineries is a dense, black, and sticky material that forms as the heaviest residue during crude oil refining. Chemically, it contains a complex mixture of hydrocarbons, including aromatic and aliphatic compounds, which give it exceptional waterproofing and adhesive qualities.
Because it cannot evaporate or dissolve easily, bitumen remains stable under various environmental conditions, making it ideal for long‑lasting infrastructure. When heated, it becomes flexible and easy to mix with aggregates — a key feature that turns it into the backbone of asphalt pavement and roofing materials.
In fact, modern infrastructure would be unimaginable without refinery‑Bitumen Produced, as it connects billions of tons of gravel and sand to form stable, weather‑resistant roads. To understand its value, we should first look at how refineries transform crude oil into high‑quality bitumen through a series of controlled thermal and chemical processes.
Bitumen in Oil Refineries – Overview
To understand how Bitumen Produced from crude oil is made, we need to look at what happens inside modern oil refineries. In these facilities, engineers use precise temperature control and pressure techniques to separate crude oil into different fractions — each with its specific use such as fuels, lubricants, or heavy residues.
During the refining process, crude oil is first heated in distillation towers. Light fractions like gasoline, diesel, and kerosene vaporize and rise to the top. The heaviest portion, known as residual oil, stays at the bottom. This heavy residue becomes the foundation for refinery‑grade bitumen.
In most refineries, the production of bitumen involves a second round of processing called vacuum distillation. This step works under reduced pressure to isolate very heavy oil fractions that cannot be separated at normal atmospheric conditions. The resulting thick liquid — known as vacuum residue — is the direct feed for creating Bitumen Produced through additional processing and air‑blowing treatments.
This refinery process ensures a consistent and high‑quality bitumen suitable for road construction and industrial waterproofing. It transforms natural crude residues into a scientifically controlled material whose viscosity, penetration level, and temperature stability meet global standards.

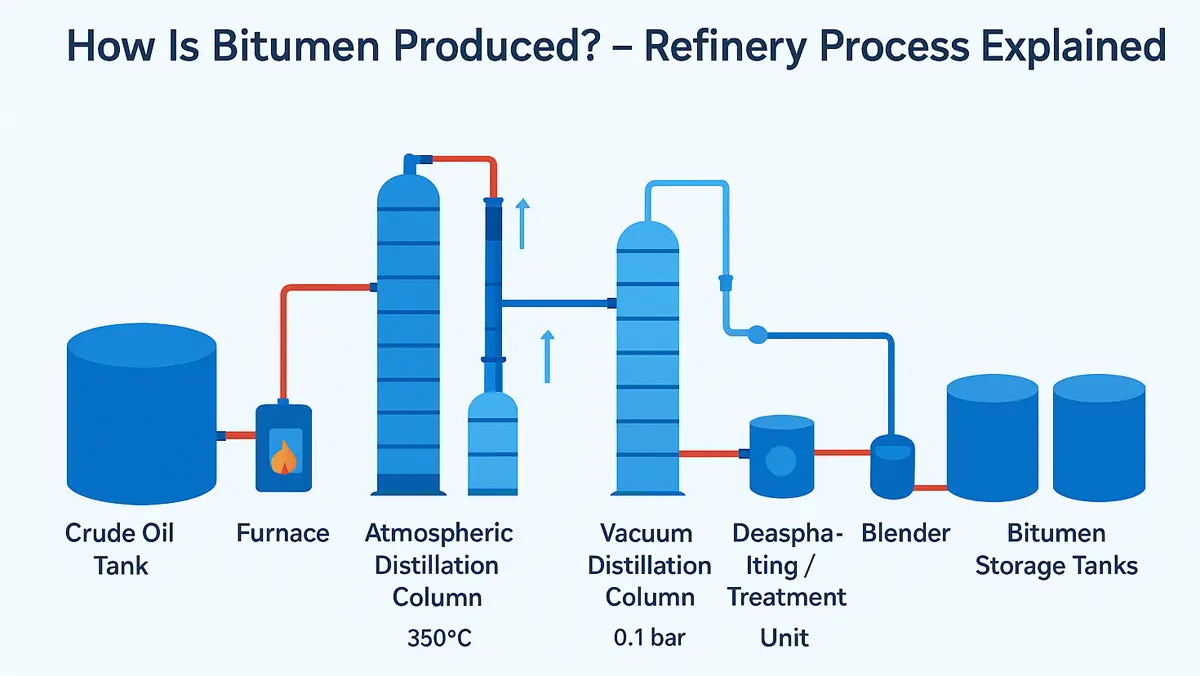

The Refinery Production Process – Step by Step
Producing Bitumen Produced in refineries involves several controlled processes that transform crude oil residues into a durable, weather‑resistant binder. Each stage is essential to achieving the correct physical and chemical properties required for industrial use.
1. Fractional Distillation
The process begins with fractional distillation, where crude oil is heated up to around 400°C inside tall distillation columns. At this stage, the lighter hydrocarbons such as kerosene and diesel evaporate and rise to the upper sections of the column, while the heaviest components remain at the bottom.
This bottom residue, rich in heavy hydrocarbons, is separated and sent for further processing. This step creates the foundation for Bitumen Produced by isolating the thick residues needed to form the final material.
2. Vacuum Distillation
Next comes vacuum distillation, a process that takes place under reduced pressure. It allows the remaining heavy oil to be distilled at lower temperatures, preventing cracking and degradation. Lighter lubricating oils are extracted here, and the thick residual product left behind — known as vacuum residue — is the primary feedstock for bitumen manufacturing.
Vacuum distillation ensures the proper composition for high‑quality refinery bitumen production, giving the material its high density and stability.
3. Oxidation Process (Air Blowing)
The most critical step of bitumen production is oxidation, often called “air blowing.” In this phase, hot air is forced through the vacuum residue at a controlled temperature between 220°C and 300°C. The oxygen reacts with the hydrocarbons, increasing molecular weight and viscosity while improving the material’s resistance to temperature changes.
By adjusting blowing time and airflow, manufacturers produce different grades like Penetration Grade Bitumen 60/70 or 80/100. This step defines how the final Bitumen Produced will behave under heat and pressure — key for road durability and industrial performance.
4. Storage and Quality Testing
After the oxidation process, the finished bitumen is cooled carefully and stored in insulated tanks to preserve its uniform texture. Each batch undergoes several laboratory tests:
| Test Type | Purpose |
|---|---|
| Penetration test | Measures hardness and grade type |
| Viscosity test | Determines flow at specific temperatures |
| Softening point test | Checks temperature resistance |
| Flash & Fire test | Ensures safety in transport and application |
Through these tests, refineries confirm that every ton of Bitumen Produced meets international quality standards before shipment or blending.
Major Bitumen Grades Produced in Refineries
Bitumen Produced is not a single product; it comes in various grades tailored to specific environmental and structural needs. Refineries utilize the oxidation and blending processes to achieve these precise specifications:
- Penetration Grade: Defined by how deeply a standard needle penetrates a bitumen sample at 25°C. Common grades like 60/70 and 80/100 show hardness variations — a softer or harder material — suitable for different climates and pavement flexibility needs.
- Viscosity Grade (VG): Determined by resistance to flow at designated high temperatures (like 60°C and 135°C). Grades such as VG-30 and VG-40 are used in heavy‑traffic roads, ensuring excellent rutting resistance under high thermal stress.
- Performance Grade (PG): A modern system that evaluates bitumen performance under climate extremes — both hot and cold. PG grading ensures Bitumen Produced remains stable and durable across global regions, offering tailored solutions based on local weather conditions.
Key Factors Affecting Bitumen Quality
The quality of Bitumen Produced relies on multiple controlled parameters during refining. Even minor fluctuations can significantly affect its end performance:
- Type of Crude Source: Heavy crude oils yield residues closer to natural bitumen, requiring less oxidation compared to light crudes.
- Refining Technology: Efficiency and modernization of distillation and oxidation units determine uniformity in output quality.
- Air-Blowing Temperature and Duration: Dictates penetration and viscosity levels; excessive blowing may create brittle material.
- Storage and Handling: Proper insulation and temperature control during storage protect bitumen from thermal degradation or hardening.
Applications of Refinery-Produced Bitumen
Refinery‑Bitumen Produced serves as the robust backbone of modern infrastructure:
- Asphalt Pavement: Mixed with aggregates to build roads, highways, and airstrips requiring strength and durability.
- Roofing Production: Used in manufacturing waterproof membranes, shingles, and insulation layers.
- Waterproof Coatings and Sealants: Applied to basements, pipelines, and foundation walls for protective sealing.
- Joint Sealing: Ideal for expansion joints in bridges and concrete structures, allowing movement while preventing leakage.
Environmental and Safety Aspects
Modern refineries integrate sustainable practices to minimize the footprint linked with Bitumen Produced:
- Emissions Control: Advanced scrubbers and filters reduce volatile organic compound (VOC) release during oxidation.
- Energy Efficiency: Heat recovery systems cut down energy consumption across distillation and blowing units.
- Worker Safety: Automation and protective protocols limit exposure to fumes and high‑temperature materials.
Conclusion
The Bitumen production process exemplifies engineering precision — transforming crude oil residues into a reliable binding agent essential for global infrastructure. Through distillation, oxidation, and rigorous testing, refineries ensure each grade of Bitumen Produced meets high performance criteria for longevity and structural integrity.
Understanding these operations offers deeper insight into the science behind everyday roads and waterproof structures, highlighting how refinery innovation continually supports sustainable development worldwide.
